Sumachay Plus SMT5+ 500kg Premium Single-Scissor Lift Table (Free Shipping + 18-Month Warranty)
Prefer a formal quote? Get it by email.

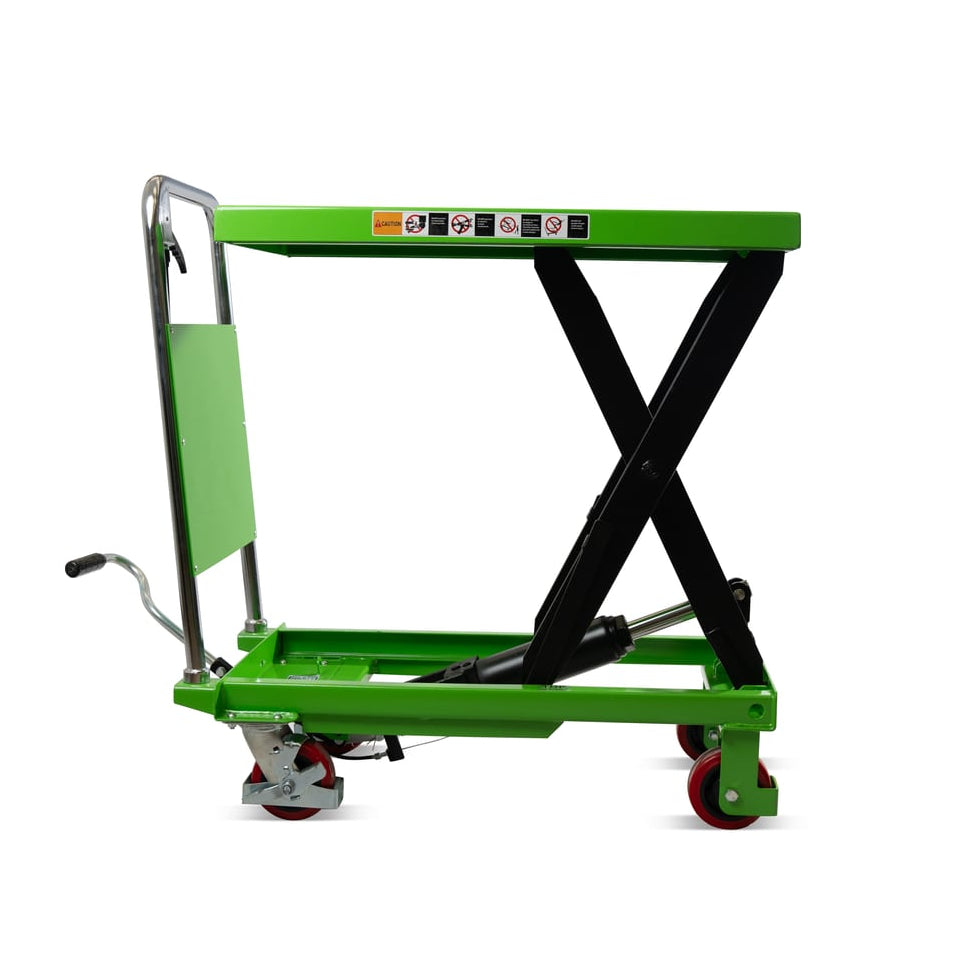

Sumachay Plus SMT5+ Premium Hydraulic Lift Table
Overview
Introducing the Sumachay Plus SMT5+ a premium-grade Lift Table engineered and manufactured by Sumachay Plus to deliver unmatched performance, reliability, and precision in material handling. Built for demanding Canadian warehouses, manufacturing facilities, and industrial environments, the SMT5+ combines robust single-scissor construction with high-quality components to provide a dependable 500 kg load capacity and exceptional operational efficiency.
Premium Sumachay Plus Advantages
Extended 18-Month Premium Warranty: Comprehensive protection on all structural and mechanical components for peace of mind.
Free Shipping Canada-Wide: Included with every SMT5+ as part of our Premium Series commitment.
Premium-Grade Construction: Heavy-duty steel frame and reinforced scissor mechanism engineered for long-term durability.
500 kg Heavy-Duty Capacity: Built to handle substantial loads with ease across a wide range of applications.
Smooth Height Adjustment: Lift from 280 mm to 900 mm using an ergonomic foot-pedal hydraulic pump for precise positioning.
Maintenance-Friendly Design: Simple hydraulic system with accessible components for minimal service downtime.
Key Features
High Load Performance: Confidently lift and position up to 500 kg (1,100 lbs) across a versatile height range.
Single-Scissor Hydraulic System: Robust unit pump ensures smooth, controlled lifting with low maintenance requirements.
Ergonomic Foot-Pedal Operation: Hands-free lifting allows operators to stay focused on handling and positioning loads.
Generous Height Range: Lowers to 280 mm for easy loading and raises to 900 mm for optimal working height.
Stable Platform Construction: 815 × 500 mm table surface with 50 mm platform thickness provides a solid, stable working area.
Heavy-Duty Casters: Φ125 mm wheels offer smooth mobility while maintaining stability under load.
Controlled Lowering Mechanism: Foot-operated release valve ensures safe, gradual, and precise lowering.
Compact & Maneuverable: Engineered for tight warehouse spaces without compromising stability or capacity.
Warranty & Support
The Sumachay Plus SMT5+ includes an industry-leading 18-Month comprehensive warranty backed directly by Sumachay Plus. Our dedicated technical support team is available to assist with any service needs or product questions.
Ideal Applications
Warehousing & Distribution: Improve ergonomics for order picking, palletizing, and staging.
Manufacturing: Precise positioning for components, assemblies, and work-in-progress materials.
Retail Operations: Safe lifting and positioning of merchandise and inventory in back-of-house areas.
Maintenance & Repair: Elevate equipment and tools to comfortable working heights for servicing.
Packaging Environments: Position products at ideal working heights for efficient packing workflows.
Upgrade to Premium
Enhance your material handling capabilities with the Sumachay Plus SMT5+ Premium Series — where precision meets reliability.
Sumachay Plus SMT5+ Premium Series Technical Specifications
| Specification | Unit | Value |
| Model | — | SMT5+ |
| Manufacturer | — | Sumachay Plus |
| Lift Type | — | Manual Hydraulic (Unit Pump) |
| Scissor Configuration | — | Single Scissor |
| Load Capacity | kg / lbs | 500 / 1100 |
| Lowest Height | mm | 280 |
| Maximum Height | mm | 900 |
| Total Lift Travel | mm | 620 |
| Table Dimensions (L × W × T) | mm | 815 × 500 × 50 |
| Platform Area | mm² | 407,500 |
| Wheel Diameter | Φ mm | Φ125 |
| Caster Type | — | Heavy-Duty Swivel |
| Net Weight | kg | 76 |
| Packing Dimensions (L × W × H) | mm | 910 × 520 × 310 |
| Cylinder Diameter | Φ mm | Φ40 |
| Hydraulic System | — | Unit Pump |
| Handle Height from Ground | mm | 970 |
| Operation Method | — | Foot Pedal (Raise) / Foot Valve (Lower) |
| Frame Material | — | Heavy-Duty Steel |
| Platform Thickness | mm | 50 |
| Surface Finish | — | Industrial Powder Coat |
| Load per 20' Container | units | 144 |
*Specifications are subject to minor variations. All measurements are approximate. Load capacity assumes evenly distributed load within platform dimensions.
Premium Warranty Information — Sumachay Plus SMT5+
Your Sumachay Plus SMT5+ Lift Table comes with an industry-leading 18-month comprehensive warranty that begins on the date of purchase, as indicated on your invoice.
This extended premium warranty covers:
- Comprehensive Repairs: Full coverage for legitimate faults, malfunctions, or breakdowns of all major structural and mechanical components including hydraulic cylinders, scissor mechanisms, platform assemblies, and wheel systems.
- Structural Integrity: Coverage for frame welds, platform construction, and scissor pivot points against manufacturing defects.
- Hydraulic Components: Complete protection for pump assemblies, release valves, and cylinder seals.
- Priority Service: Expedited response times for warranty claims as part of the Premium Series commitment.
Important Warranty Exclusions:
This warranty does not cover issues arising from:
- Normal wear and tear of consumable components (wheels, casters, hydraulic seals, paint finish)
- Accidents, negligence, misuse, or operation beyond rated capacity
- Use in environments where the unit is exposed to corrosive chemicals or excessive moisture
- Modifications or repairs performed by unauthorized service providers
- Failure to follow recommended maintenance procedures and safe operating practices
Maintenance Recommendations:
To ensure optimal performance and longevity of your SMT5+ Premium Lift Table, we strongly recommend:
- Regular inspection of hydraulic fluid levels and cylinder condition
- Periodic lubrication of scissor pivot points and wheel bearings
- Proper cleaning to prevent debris accumulation in moving components
- Appropriate storage in clean, dry environments when not in use
- Regular inspection of platform surface and structural welds
- Periodic inspection by authorized Sumachay Plus service technicians
For warranty claims, technical support, or service inquiries, please contact our dedicated Sumachay Plus Premium Support Team. We are committed to keeping your operations running smoothly with minimal downtime.
Sumachay Plus — Premium Quality, Premium Support.
Frequently Asked Questions — Sumachay Plus SMT5+
Q: What makes the SMT5+ different from standard lift tables?
A: The SMT5+ is part of our Premium Series and includes several exclusive upgrades: an extended 18-month comprehensive warranty (50% longer than standard coverage), free Canada-wide shipping, premium-grade steel construction with reinforced welds, enhanced hydraulic components for smoother operation, and priority technical support. It's engineered for operations that demand the highest reliability and minimal downtime.
Q: How does the hydraulic pump system work?
A: The SMT5+ features a simple, reliable unit pump system operated by a foot pedal. Each press of the pedal activates the hydraulic pump, gradually raising the platform. The system is designed for smooth, controlled lifting with minimal effort. To lower, simply operate the foot-release valve for gradual, controlled descent. This hands-free operation keeps operators focused on load handling.
Q: What is the total lifting range?
A: The SMT5+ provides 620 mm of total vertical travel. The platform lowers to a minimum height of 280 mm for easy load placement and extends to a maximum height of 900 mm. This generous range makes it ideal for ergonomic positioning, order picking, assembly work, and various material handling tasks where adjustable height is essential.
Q: What size and type of loads can the SMT5+ handle?
A: The SMT5+ is rated for loads up to 500 kg (1,100 lbs) within its 815 × 500 mm platform dimensions. The solid 50 mm thick platform can accommodate boxes, pallets, equipment, machinery components, and various other load types. The stable design ensures safe operation across the full height range when loaded within capacity.
Q: What maintenance does the SMT5+ require?
A: The SMT5+ is designed for minimal maintenance. We recommend periodic inspection of hydraulic fluid levels, lubrication of scissor pivot points, and cleaning to prevent debris accumulation. The robust construction and quality components minimize wear. The simple hydraulic system has few moving parts, reducing maintenance requirements compared to complex powered lift systems.
Q: Can the SMT5+ be moved while loaded?
A: While the SMT5+ features Φ125 mm casters for mobility, we recommend moving the unit primarily when unloaded or with minimal loads for safety and to extend wheel life. The casters allow repositioning within your workspace, but this is a stationary lift table designed for lifting and positioning rather than transportation of loads across long distances.
Q: Does the free shipping apply to all Canadian provinces and territories?
A: Yes, free shipping is included for all SMT5+ orders to addresses across Canada, including all provinces and territories. This is part of our Premium Series commitment to delivering exceptional value to our customers coast to coast.
Q: Is the SMT5+ suitable for outdoor use?
A: The SMT5+ is designed primarily for indoor use in warehouse, manufacturing, and industrial environments. While the robust steel construction can withstand occasional outdoor use, we recommend protecting the unit from prolonged exposure to moisture, extreme temperatures, and corrosive elements to maximize lifespan and maintain warranty coverage.
Request a Quote
A sales representative will contact you shortly.
Sumachay Plus SMT5+ Manual Lift Table
A premium lift table built for daily handling — smoother operation, stronger long-term reliability, and a better ownership experience across Canada.
Free Shipping (Canada)
No hidden delivery costs
18-Month Warranty
Extended coverage standard on Plus
Priority Support
Faster response for Plus customers
Faster Service Visibility
Clear documentation and support path
Why This Plus Product Is Different
SMT5+ is the premium version of our SMT5 lift table — made for teams that move heavy items every day and want more predictable uptime, support, and durability.
| Feature | SMT5+ Plus | SMT5 Standard |
|---|---|---|
| Warranty Coverage | 18 Months | 12 Months |
| Priority Support | Standard | |
| Full Technical Documentation | Basic | |
| Service Path Visibility | Priority Access | Standard Queue |
| Component Quality Tier | Premium Grade | Standard |
| Designed for Duty Cycle | High / Daily Use | Moderate |
Built for Heavy-Duty Daily Handling
Every component selected for durability, smooth operation, and reduced operator strain in high-use environments.
Smoother Lift Control
Consistent hydraulic response for controlled lifting and lowering of heavy loads.
Stable Platform Handling
Wide platform and reinforced frame keep loads secure during positioning and transport.
Heavy-Duty Frame Build
Steel construction rated for sustained daily use in demanding work environments.
Operator-Friendly Foot Pump
Ergonomic pump action reduces operator fatigue during repeated lifting cycles.
Reduced Strain Workflow
Brings work to ergonomic height, reducing bending and lifting strain on operators.
Canada-Wide Support Path
Priority access to technical support and replacement parts across Canada.
Ideal Applications
Is This Plus Product Right for Your Operation?
The SMT5+ Plus is ideal for facilities that need to lift heavy loads daily and want reliable operation, extended warranty, and priority support. Perfect for:
Warehouses & Distribution: Lift pallets and heavy loads to ergonomic working height for packing, assembly, and inspection operations.
Manufacturing & Assembly: Position heavy machinery and parts at comfortable working height. Reduce operator strain during production.
Maintenance & Repair Shops: Safely elevate engines, equipment, and parts for servicing. Eliminates dangerous lifting and reduces back strain.
Shipping & Receiving: Lift pallets and shipments for easier loading, unloading, and verification. Speed up dock operations.
Key Specifications at a Glance
Extended Warranty — Standard on Plus Products
Sumachay Plus products include an 18-month extended warranty as standard — 50% longer coverage than our regular range. Built for operations that cannot afford downtime.
The Choice of 1,000+ Canadian Businesses
Trusted by industry leaders across Canada
